Interfacing with MÆSTRO

Inputs

Algorithm parameters

The algorithm parameters are used to specify the problem and algorithm metrics of MÆSTRO. These parameters are specified in JSON format and the structure and keys of the expected algorithm parameters JSON is given below.

{
    "tr": {
        "radius":
        "max_radius":
        "min_radius":
        "center": [

        ]
        "mu":
        "eta":
    },
    "param_names": [

    ]
    "param_bounds": [

    ]
    "kappa":
    "max_fidelity":
    "usefixedfidelity":
    "N_p":
    "dim":
    "theta":
    "thetaprime":
    "fidelity":
    "max_iteration":
    "max_fidelity_iteration":
    "min_gradient_norm":
    "max_simulation_budget":
    "output_level":
}

The data type, description, and example values for each key in the algorithm parameters JSON is given below.

radius: float initial trust region radius
```
  "radius": 5.0
```
max_radius: float maximum value allowed for the trust region radius
```
  "max_radius": 20.0,
```
min_radius: float minimum value allowed for the trust region radius
```
  "min_radius": 1.0e-5,
```

center: array<float> starting point or the center of the initial trust region

"center": [
    2.13681979279795745,
    -2.7717580840968665,
    3.2082901878570345
],

mu: float surrogate model precision constant that is used as a factor to check model precision if current iterate is close to minimum
```
  "mu": 0.01,
```
eta: float surrogate model fitness threshold that used as upper bound for significant reduction condition \(\rho\)
```
  "eta": 0.01
```
param_names: array<str> names of the parameter dimensions
```
"param_names": [
  "x",
  "y",
  "z"
],
```
param_bounds (optional): array<array<float>> minimum and maximum bounds of the parameter dimensions
```
"param_bounds": [
  [-4.0,4.0],
  [-5.0,5.0],
  [-3.0,3.0]
],
```
kappa: float adaptive sampling constant that is used in the bound to check the accuracy of the Monte Carlo simulator. The higher this number is the more the standard deviation of the simulator can be for its samples to be accepted as accurate sample for any given trust region radius and fidelity
```
  "kappa":100
```
max_fidelity: int maximum fidelity allowed for the Monte Carlo simulator
```
  "max_fidelity":10000000
```
usefixedfidelity (optional, defaults to true): boolean set to true if fixed fidelity level is to be used, and set to false to use multiple levels of fidelity
```
  "usefixedfidelity":false
```
N_p: int number of parameters points to interpolate and run the simulator within the trust region of each iteration
```
  "N_p": 10
```
dim: int number of parameter dimensions. This number should match the number of elements in the values associated with the keys: param_bounds, param_names, and center
```
  "dim": 3
```
theta: float used as a factor in the calculation of minimum distance between the interpolation parameters of the trust region. The higher this value, the more distance a parameter needs to be with respect to all other parameters
```
  "theta": 0.01
```
thetaprime: float Used as a factor in the calculation of equivalence distance between the new interpolation parameters and those parameters on which the simulation was performed in the previous iterations. The lower this value, the closer the old parameters need to be to the new parameters to be selected for reuse
```
  "thetaprime": 0.0001
```
fidelity: int fidelity value when usefixedfidelity = false and initial fidelity value when usefixedfidelity = true
```
  "fidelity": 1000
```
max_iteration: int maximum number of iterations, the algorithm can run for
```
  "max_iteration":50
```
max_fidelity_iteration: int number of iterations for which the the fidelity can be at the maximum value (only applicable when usefixedfidelity = false)
```
  "max_fidelity_iteration":5
```
min_gradient_norm: float lower bound for the (projected) gradient norm
```
  "min_gradient_norm": 0.00001
```
max_simulation_budget: int maximum cumulative sum of the simulations (fidelity) allowed across all iterations
```
  "max_simulation_budget":1000000000000000
```
output_level: int output level. The mapping of values to the output printed to console is:
- 0: quiet, dont print anything except for the output message
- 10: everything printed in the previous level plus the single line optimization output (see below)
- 11: everything printed in the previous level plus the next iterate value
- 20: everything printed in the previous level plus interpolation points in every iteration
- 30: everything printed in the previous level plus value of the f_structure composed of model and of MC at the new iterate
- 40: everything printed in the previous level plus norm of the step taken in each iteration
- 50: verbose/debug mode. Print everything
```
  "output_level":0
```

Configuration inputs

The configuration inputs are used to specify the configuration in which to run MÆSTRO. These inputs are specified in JSON format and the structure and keys of the expected configuration inputs JSON is given below.

{
    "mc":{
      "caller_type":
      "class_str":
      "location_str":
      "ranks":
      "parameters":{

      }
    },
    "model":{
      "parameters":{

      },
      "function_str":{

      }
    },
    "f_structure":{
      "parameters":{

        "optimization":{

        }
      },
      "function_str":
    }
}

The data type, description, and examples for each key in the configuration inputs JSON is given below.

mc: object configuration of the Monte Carlo simulator. The keys within this object include:
- caller_type: str
  - use function call as value to run the simulator using a function call. Specify the name of class within maestro.mc as value of class_str
  - use script run as value to run the simulator by calling a script. For this kind of a call, in addition specifying the name of class within maestro.mc as value of class_str, the location of the script also needs to be specified as value of location_str
  - use workflow as value to run the simulator as a task in decaf - henson workflow. Specify the name of class within maestro.mc as value of class_str
- class_str: str name of class within maestro.mc
- location_str: str location of script when caller_type is script_run
- ranks: int number of MPI ranks to use to run the simulator when caller_type is script_run
- parameters: object parameters to be during the simulation run. This object will be passed as is to the function or script or workflow task and will not be processed by the optimization code
```
"mc":{
  "caller_type":"script run",
  "class_str":"SumOfDiffPowers",
  "location_str":"<path to mc script>",
  "ranks":1,
  "parameters":{"mc_params":"<path to mc params>"}
}
```
model: object configuration of the surrogate model. The keys within this object include:
- function_str: object for each type of data generated by the Monte Carlo simulator, specify the name of the function within maestro.ModelConstruction to use for surrogate model construction. For instance, if the simulator produces value and error values, then this object will have two keys whose values will specify the name of functions within maestro.ModelConstruction to use for surrogate model construction. For more information on available functions in maestro.ModelConstruction or how to create your own, see models
- parameters: object in addition to the interpolation parameters within the trust region and the corresponding values generated by the simulator, the key-value pairs in this object will be used as parameters for surrogate model creation in function specified in function_str.
```
"model":{
  "function_str":{
    "MC":"appr_pa_m_construct",
    "DMC":"appr_pa_m_construct"
  },
  "parameters":{
    "MC":{"m":2},
    "DMC":{"m":1}
  }
}
```
f_structure: object configuration of the function structure. The keys within this object include:
- function_str: str specify the name of the function within maestro.Fstructure to use for f_structure object construction. For more information on available functions in maestro.Fstructure or how to create your own, see models
- parameters: object the key-value pairs in this object will be used as parameters for f_structure object creation in function specified in function_str. Additionally, the parameters object contains an additional key to specify optimization parameters
  - optimization: object the the key-value pairs in this object are used as parameters by the minimize function in the f_structure object obtained by running the function specified in function_str.
```
"f_structure":{
  "function_str":"appr_tuning_objective_without_error_vals",
  "parameters":{
    "data":"if the key data does not give the path of the data JSON file then the value of 0 and error of 1 is assumed",
    "weights":"if the key weights does not give the path to the weights file then a weight of 1 is assumed",
    "optimization":{
      "nstart":5,
      "nrestart":10,
      "saddle_point_check":false,
      "minimize":true,
      "use_mpi":true
    }
  }
}
```

Outputs

One line output

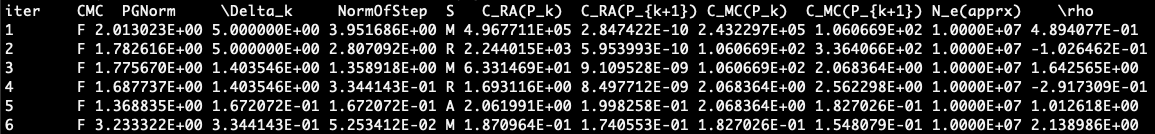

For each iteration, the MÆSTRO algorithm generates one line output describing the progress of the optimization when \(output\_level\ge10\) in the algorithm parameters inputs. An example snippet of the one line output and the description of each column is given below:

iter: current iteration number
CMC: check minimum condition
- T: True if the current iterate is found to be close to the minimum
- F: False if the current iterate is not found to be close to the minimum
PGNorm: Projected gradient norm
Delta_k: trust region radius
NormOfStep: norm of the step from current iterate to next iterate
S: Status
- M: Moved, trust region center moved to the next iterate but the trust region radius remains the same
- A: Accept, trust region center moved to the next iterate and the trust region radius doubled
- R: Reject, trust region center stays at the current iterate and the trust region radius halved
C_RA(P_k): value of the f_structure composed of the surrogate model evaluated at the current iterate
C_RA(P_{k+1}): value of the f_structure composed of the surrogate model evaluated at the next iterate
C_MC(P_k): value of the f_structure composed of the simulator run values from the current iterate
C_MC(P_{k+1}): value of the f_structure composed of the simulator run values from the next iterate
N_e(apprx): current fidelity
rho: sufficient decrease condition \(\rho\)

Exit Codes

The exit codes and messages maintained by MÆSTRO algorithm are given below.

0: Ok to continue on to next iteration
1: Success: norm of the projected gradient is sufficiently small
2: Max iterations reached
3: Simulation budget depleted
4: Failure: MC task was successful on less than 1 or N_p parameters (error)
5: Trust region radius is an order of magnitude smaller than the radius at which max fidelity was reached
6: Fidelity has been at a maximum value for the specified number of iterations
7: The usable MC output was less than what was needed for constructing a model. It is possible that too many parameters yielded MC output that was either nan or infinity
8: Other failure occurred
9: Trust region radius is less than the specified minimum bound
10: The function structure solution indicates that the current iterate is very similar to the previous iterate. This could happen because the algorithm is near a stationary point due to which it fails to move from the current iterate. Then all of the same parameters from the previous iteration got selected within the trust region of the current iteration. In this state, the solver cannot continue. Quitting now.
